Precision Air Pressure Control for Extruded Tubing Applications

AC2 Product Overview

The Model AC2 uses the customer’s plant compressed air supply to provide a precision air pressure control for single lumen and multi-lumen tubing. With the AC2, pressure can be controlled and displayed in increments of 0.01 in-H2O. The AC2 is optimized for fast pressure response for the production of straight tubing and Bump and Taper tubing. Bump and Taper tubing control is included standard via analog or digital input. Units are available in 1 to 5 port NEMA style enclosures. A rack system is available for higher port counts. All AC2 models have a color touchscreen interface.

AC2 Standard Features and Options

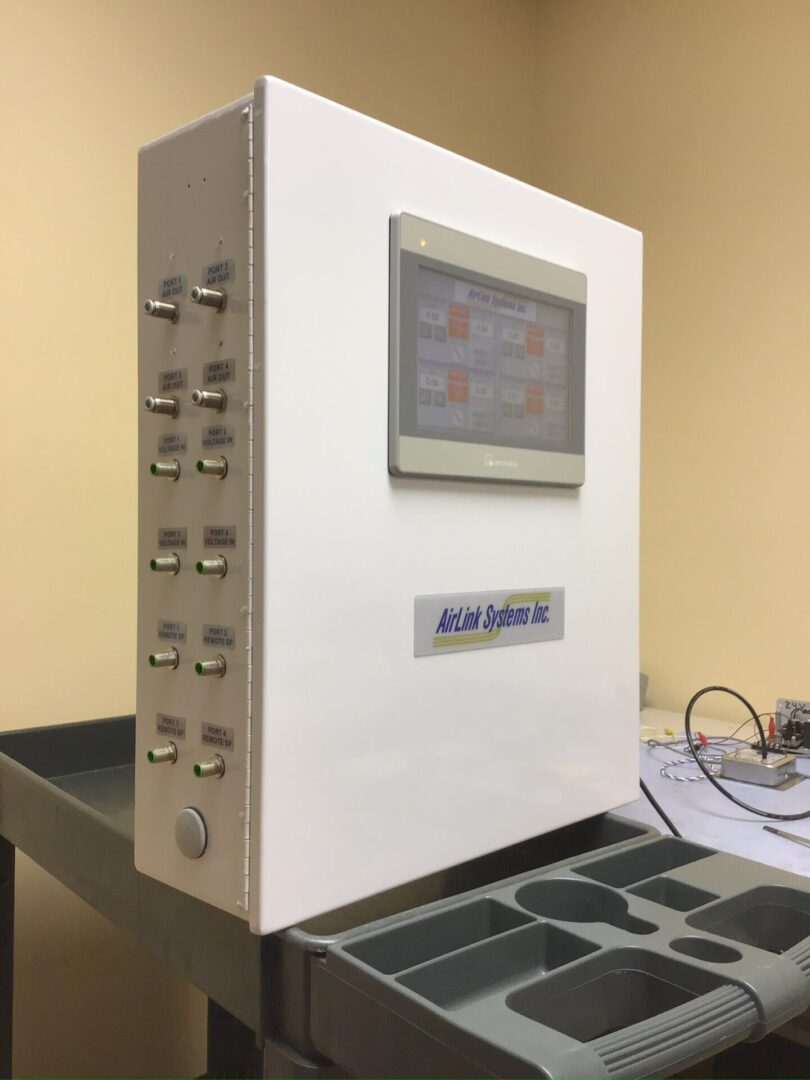

image222 (1)-1
IMG_0524

Standard Features

  • Remote Setpoint Change - separate digital inputs Increase/Decrease for Interface to Diameter Gauges and Other Control Equipment
  • All Digital Inputs (10-30VDC Opto- Isolated)
  • High Speed Bump Tubing Control - Analog and Digital Hi/Lo input from customer equipment with independent pressure scaling and trim, from menu
  • Color Touchscreen Interface
  • Enclosures: Powder Coated White

Options

  • Remote Touchscreen with Ethernet Communications
  • Available Fieldbus Interfaces
  • MODBUS TCP
  • Ethernet IP for Logix 5000
  • Other Fieldbus interfaces upon request
  • High Flow Capability

AC2 Air Controller Specifications

Available Pressure Ranges ​(in H2O):
0-1, 0-5, 0-10, 0-20, 0-30, 0-60 Other custom ranges available 		Standard Operating Temperature Range: 32-104 degrees F
Max Flow Rate​:
0.75 SCFM at 80 psi (Standard)
1.50 SCFM at 80 psi (High Flow Unit) 		Main Supply Power:
 110 VAC +/- 10% 50/60 Hz
Single Phase (220 VAC Available)
Pressure Display Resolution​:
0.01in H2O  		Air Output Port Connection​:
¼” Tubing Quick Disconnect
Pressure Repeatability​: +/- 0.01 in H2O Air Supply Connection​: 3/8” Tubing Quick Disconnect
Enclosure:​ Powder Coated Medical White Paint
1 Port Unit - 12” x 12” x 6”
2 Port Unit – 14” x 16” x 6”
3,4 Port Unit – 20” x 24” x 7​”
5 Port Unit - 24" x 25" x 7"
Optional Stainless Steel Enclosures available 		Operator Interface:
1 Port - 4.3" Color Touchscreen
2 Port - 7” Color Touchscreen
3, 4 and 5 Port - 10” Color Touchscreen
Optional Remote Touchscreens Available
